Simply place the SapSpy Sensor Hub in your sugar bush, turn it on, login to the web app and always know the status of your sugarbush.
Key Features:
The Sap Spy - Sensor Hub
At Sap Spy, it all starts with the Sensor Hub, an all-in-one device that monitors the most critical needs of a sugarbush. The sensor hub takes readings of vacuum, tank level, and temperature every 5 minutes and makes the data available from any mobile device or PC.
Features:
Cellular connected and ready for you to use.
New technology allows for it to connect even in low cellular service areas.
Includes rechargeable battery that lasts 2-4 weeks between charges when you don't have constant power.
Rechargeable by USB, solar panel or 12 VDC
Can communicate with "Sensor Nodes" to allow for additional sensors to be placed throughout the sugarbush.
Introducing:
Sensor Nodes
Sensor Nodes provide additional vacuum or tank level sensors throughout a sugarbush allowing you to quickly pinpoint the exact location of a leak in order to maximize your gallons/tap and overall profitability of your sugarbush. The range between two nodes in a typical sugarbush is 1/4 upto 1/2 mile between nodes (~3 miles line of sight).
Spy Mesh technology allows other nodes to repeat the signal back to the hub allowing for near endless coverage throughout a sugarbush.
New Feature
Integration in onX
Sap Spy can now be integrated with your existing onX map of your sugarbush. Mainlines change color based on vacuum readings and measured vacuum from sensor nodes throughout the sugarbush are overlay the map. This allows you to quickly pinpointthe leak in your system getting you back to max vacuum.
As of Dec 18th 2023, sensor nodes are in stock for the 2024 season. Most orders ship in 1-3 days.

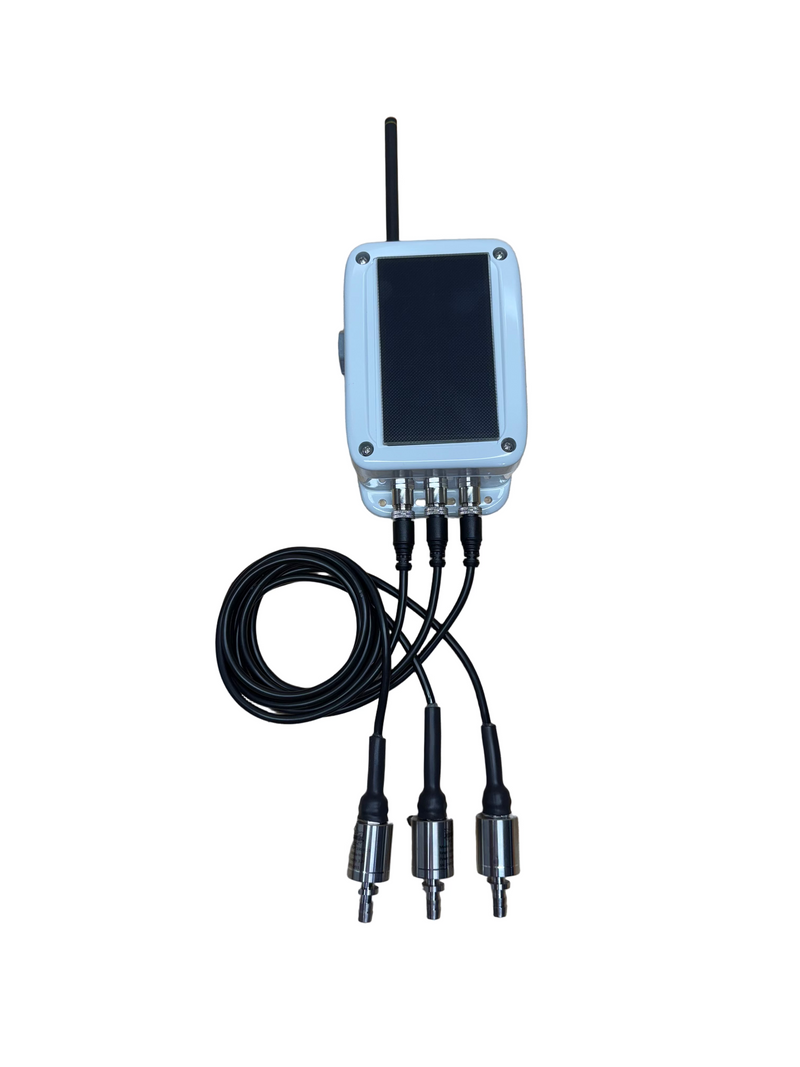

A SapSpy Sensor Node communicates to the SapSpy Sensor Hub (Sold Separately) allowing you to measure vacuum at different locations in your sugarbush.
A sensor node can be one of the following configurations:
1) Single Vacuum Sensor with temperature sensor
2) Dual vacuum sensor with temperature sensor
3) Single Vacuum Sensor with Ultrasonic Tank level sensor and temperature sensor (used for a tank and releaser)
4) Single Ultrasonic tank level sensor and temperature sensor (Typically used where an electric releaser pumps to a remote tank where vacuum monitoring is not needed).
In order for SapSpy Sensor Nodes to communicated to the SapSpy Sensor Hub, the Sensor Hub must include an add-on radio option for +$100.

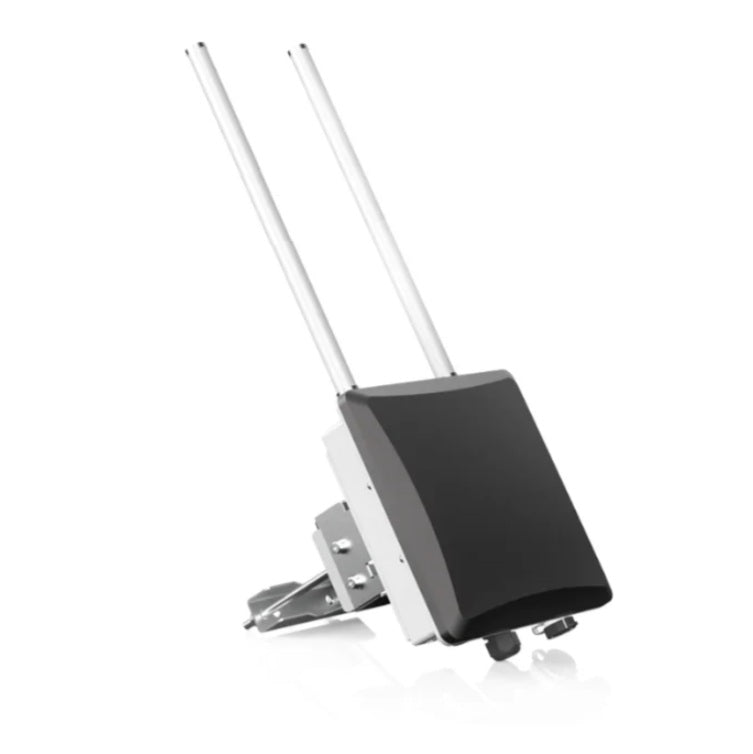

Sap Spy nodes are now capable of Spy Mesh. Spy Mesh allows nodes to repeat a signal in order to significantly increase the distance between end of line vacuum sensors and the sensor hub (Cellular Gateway). Videos and additional instructional content will be updated in Q4 of 2022 discussing this new and exciting functionality.
A single sensor hub can service many sensor nodes (currently up to 40). The recommended maximum number of hops between a sensor hub and sensor node is 4. The expected distance between two sensors nodes is estimated at ~1500' - 2500' through a typical sugarbush. Line of sight, sensor nodes can reach 3 miles+ between two nodes. It is recommended to use a dedicated Sensor Hub per sugarbush location and use that particular Sensor Hub to service all sensor nodes in the local sugarbush.

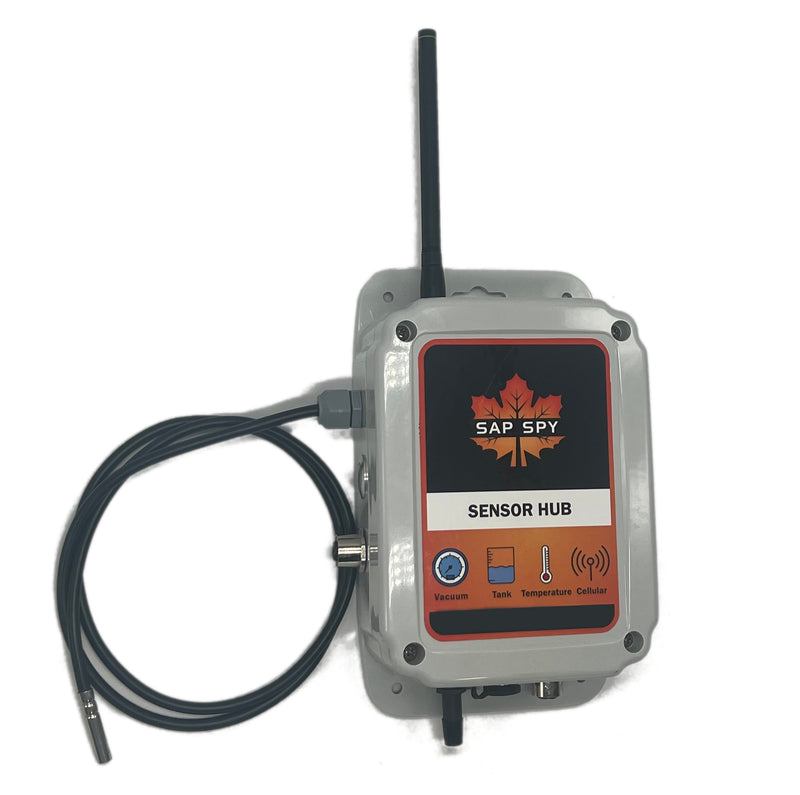

SapSpy
Sensor Hub - Cellular
Regular price
$1,095.00
Sale price
$1,015.00
Includes everything you need to begin monitoring your sugarbush today including: 6' USB Cable, USB power adapter, Vacuum hook-up connection to releasers, Submersible tank level sensor with 10 ft cable.
Device includes SIM Card and ships pre-activated ready to connect. Requires $50/season subscription fee paid to SapSpy. The first season is included with your purchase. Future seasons will be invoiced in January.
Measure: Tank Level (0-100%) Vacuum Level (0-29.9 inHg) Temperature (degrees F)

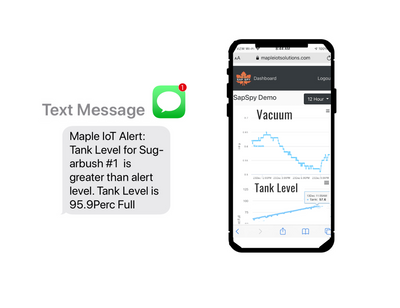

Alert: Send text alert based on alert settings you configure. Sends alerts up to 3 people.
Plot history: Plot the history of the vacuum level, tank level and temperature for durations between 1 hr and 14 days. Known how cold it was last night as well as how the sap is running during the day. Ensure your vacuum is always at peak performance.

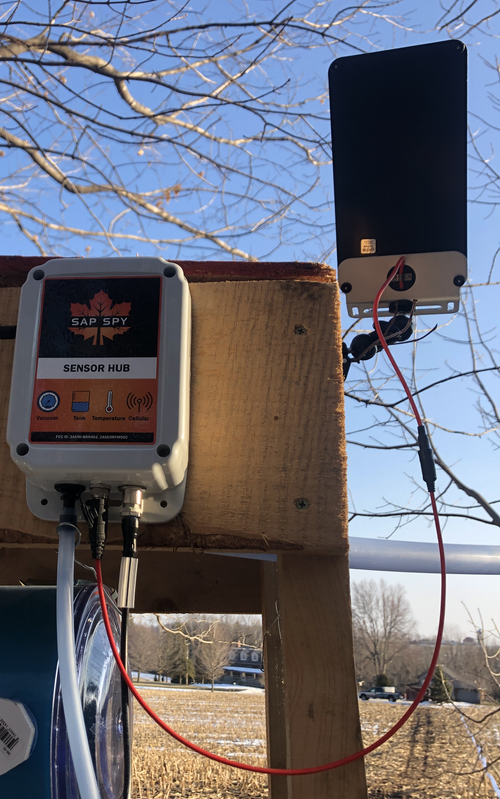

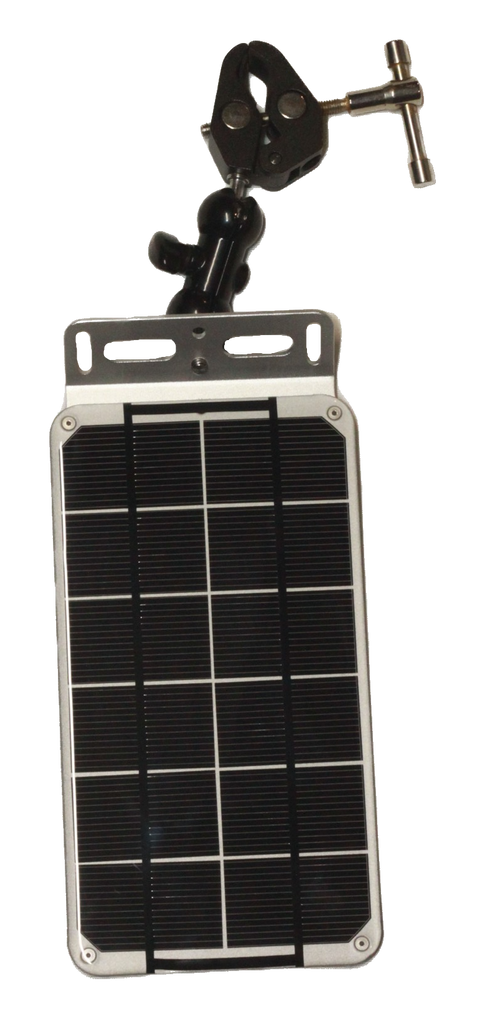

No power in the woods? No Problem: Device can last 2-4 weeks on a single charge. Available Options include: Solar Panel or alligator clips for 6-12 Volt battery.
No WiFi in the woods? No Problem: Device connects over the cellular network with near full Cellular coverage throughout US and most of Canada

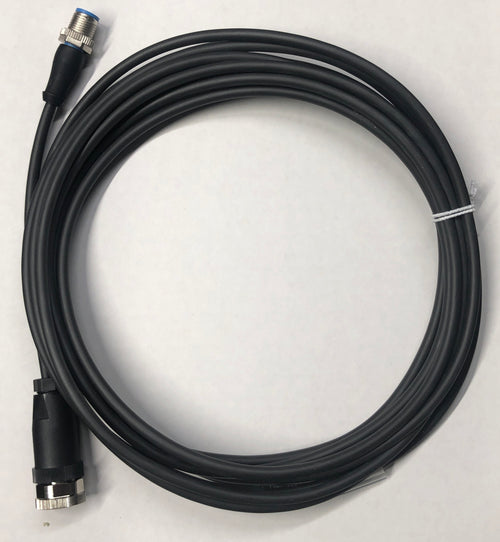

Includes everything you need to begin monitoring your sugarbush today including: 6' USB Cable, USB power adapter, Vacuum hook-up connection to releasers, submersible tank level sensor with 10 ft cable + 10' extension cable.
Requires $50/season subscription fee paid to Sap Spy. The first season is included with your purchase. Future seasons will be invoiced in January.
Measure: Tank Level (0-100%) Vacuum Level (0-29.9 inHg) Temperature (degrees F)
Alert: Send text alert based on alert settings you configure. Sends alerts up to 3 people.
Plot history: Plot the history of the vacuum level, tank level and temperature for durations between 1 hr and 14 days. Known how cold it was last night as well as how the sap is running during the day. Ensure your vacuum is always at peak performance.
Limited Cell Service or Already have WiFi? No Problem: The WiFi sensor hub connects over your existing WiFi network for connectivity.
